Slot milling cutters three - sided, adjustable : 676.24-125-1416

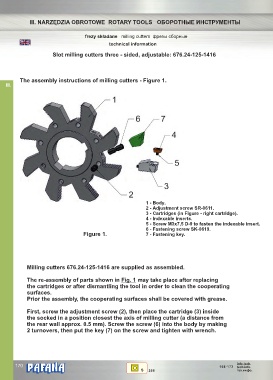

The assembly instructions of milling cutters - Figure 1.
III.

1 - Body.
2 - Adjustment screw SR-0611.
3 - Cartridges (in Figure - right cartridge).
4 - Indexable inserts.
5 - Screw M3x7,5 D-9 to fasten the indexable insert.
6 - Fastening screw SK-0619.
Figure 1. 7 - Fastening key.

Milling cutters 676.24-125-1416 are supplied as assembled.

The re-assembly of parts shown in Fig. 1 may take place after replacing
the cartridges or after dismantling the tool in order to clean the cooperating
surfaces.
Prior the assembly, the cooperating surfaces shall be covered with grease.

First, screw the adjustment screw (2), then place the cartridge (3) inside
the socked in a position closest the axis of milling cutter (a distance from
the rear wall approx. 0.5 mm). Screw the screw (6) into the body by making
2 turnovers, then put the key (7) on the screw and tighten with wrench.
