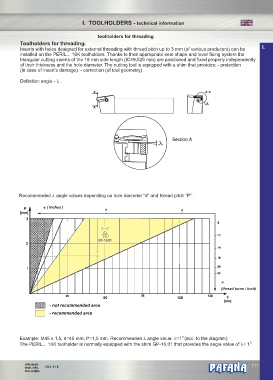

I. TOOLHOLDERS - technical information

toolholders for threading
Toolholders for threading.
Inserts with holes designed for external threading with thread pitch up to 3 mm (of various producers) can be I.
installed on the PER/L... 16K toolholders. Thanks to their appropriate seat shape and lever fixing system the
triangular cutting inserts of the 16 mm side length (IC=9,525 mm) are positioned and fixed properly independently
of their thickness and the hole diameter. The cutting tool is equipped with a shim that provides: - protection
(in case of insert’s damage), - correction (of tool geometry).

Definition angle - l .

Section A

Recommended l angle values depending on hole diameter “d” and thread pitch “P”.

( inches )

(thread turns / inch)

- not recommended area
- recommended area

O
Example: M45 x 1,5, d=45 mm; P=1,5 mm. Recommended l angle value: l=1 (acc. to the diagram)
O
The PER/L... 16K toolholder is normally equipped with the shim GP-16.01 that provides the angle value of l= 1 .
