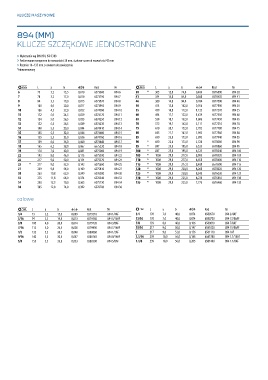

Page 138 - 3001334 Katalog GEDORE 2016 GPL
P. 138
KLUCZE MASZYNOWE 138
894 (MM)
KLUCZE SZCZĘKOWE JEDNOSTRONNE
› Wykonanie wg DIN 894, ISO 3318
› Fosforowane manganem do rozwartości 38 mm, stalowo-szare od rozwartości 42 mm
› Rozmiar 10–135 mm z otworem do zawieszenia
*nienormowany
! L a b 0 Kod Nr ! L a b 0 Kod Nr
6 73 3,2 15,5 0,010 6573600 894 6 38 * 305 12,8 74,0 0,406 6576890 894 38
7 78 3,2 17,0 0,010 6573790 894 7 41 344 13,8 84,0 0,568 6576970 894 41
8 94 3,5 19,0 0,015 6573870 894 8 46 380 14,8 94,0 0,704 6577000 894 46
9 100 4,0 20,0 0,017 6573950 894 9 50 413 15,8 102,0 0,956 6577190 894 50
10 106 4,5 22,0 0,022 6574090 894 10 55 459 16,8 112,0 1,125 6577270 894 55
11 112 5,0 24,5 0,029 6574170 894 11 60 494 17,7 122,0 1,439 6577350 894 60
12 124 5,0 26,5 0,035 6574250 894 12 65 528 18,7 132,0 1,686 6577430 894 65
13 132 5,5 28,5 0,039 6574330 894 13 70 572 19,7 142,0 2,111 6577510 894 70
14 140 5,5 30,0 0,044 6574410 894 14 75 610 20,7 152,0 2,782 6577780 894 75
15 145 5,5 32,0 0,046 6574680 894 15 80 645 21,7 162,0 2,905 6577860 894 80
16 155 5,5 33,0 0,056 6574760 894 16 85 690 23,0 173,0 3,895 6577940 894 85
17 159 6,0 36,0 0,060 6574840 894 17 90 * 690 23,0 173,0 3,720 6578080 894 90
18 165 6,2 38,0 0,067 6575220 894 18 95 * 847 25,0 195,0 6,335 6578160 894 95
19 170 7,0 40,0 0,081 6575060 894 19 100 * 847 25,0 195,0 6,125 6578240 894 100
22 193 8,0 46,0 0,113 6575300 894 22 105 * 1000 29,0 217,0 8,905 6578320 894 105
24 217 9,0 50,0 0,154 6575570 894 24 110 * 1000 29,0 217,0 8,650 6578400 894 110
25 * 217 9,0 52,0 0,142 6575650 894 25 115 * 1000 29,0 217,0 8,480 6578590 894 115
27 239 9,8 56,0 0,199 6575810 894 27 120 * 1000 29,0 220,0 8,260 6578670 894 120
30 263 10,8 62,0 0,249 6576380 894 30 125 * 1000 29,0 220,0 8,345 6576030 894 125
32 275 11,8 66,0 0,374 6576540 894 32 130 * 1000 29,0 225,0 8,230 6576110 894 130
34 290 12,3 70,0 0,365 6575730 894 34 135 * 1000 29,0 225,0 7,775 6576460 894 135
36 305 12,8 74,0 0,392 6576700 894 36
calowe
" L a b 0 Kod Nr " L a b 0 Kod Nr
1/4 73 3,2 15,5 0,009 6579210 894 1/4AF 3/4 170 7,0 40,0 0,074 6580570 894 3/4AF
5/16 94 3,5 19,0 0,013 6579560 894 5/16AF 13/16 170 7,0 40,0 0,074 6580730 894 13/16AF
3/8 100 4,0 20,0 0,014 6579720 894 3/8AF 7/8 193 8,0 46,0 0,106 6580810 894 7/8AF
7/16 112 5,0 24,5 0,026 6579990 894 7/16AF 15/16 217 9,0 50,0 0,147 6581030 894 15/16AF
1/2 132 5,5 26,5 0,040 6580060 894 1/2AF 1 217 9,0 52,0 0,156 6581110 894 1AF
9/16 140 5,5 30,0 0,047 6580140 894 9/16AF 1.1/16 239 10,0 56,0 0,186 6581380 894 1.1/16AF
5/8 155 5,5 33,0 0,053 6580300 894 5/8AF 1.1/8 239 10,0 56,0 0,205 6581460 894 1.1/8AF
