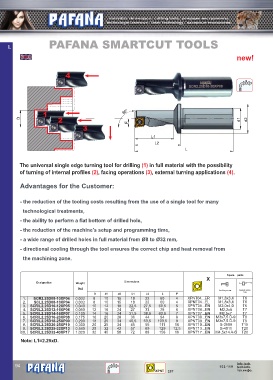

PAFANA SMARTCUT TOOLS
I.

new!

4

90°
1
D
2 F d1 d2
3

L1
L2
L

The universal single edge turning tool for drilling (1) in full material with the possibility
of turning of internal profiles (2) , facing operations (3) , external turning applications (4) .

Advantages for the Customer:

- the reduction of the tooling costs resulting from the use of a single tool for many

technological treatments,
- the ability to perform a flat bottom of drilled hole,

- the reduction of the machine's setup and programming time,
- a wide range of drilled holes in full material from Ø8 to Ø32 mm,

- directional cooling through the tool ensures the correct chip and heat removal from
the machining zone.

Spare parts
X
Designation Weight Dimensions
[kg]
Locking screw Socket screw
key
D d1 d2 L1 L2 L F
1. SCR2.25D08-10XP04 0,032 8 10 15 18 22 60 4 XPNT04...ER M1,8x3,4 T6
2. SCL2.25D08-10XP04 0,032 8 10 15 18 22 60 4 XPNT04...EL M1,8x3,4 T6
SCR/L2.25D10-12XP05
3. 0,040 10 12 18 22,5 27,5 69,5 5 XPNT05...EN M2,0x4,0 T6
SCR/L2.25D12-16XP06 0,090 12 16 24 27 33 78 6 XPNT06...EN M2,2x5 T7
4.
5. SCR/L2.25D14-16XP07 0,100 14 16 24 31,5 38,5 83,5 7 XPNT07...EN M2,5x7 T7
6. SCR/L2.25D16-20XP08 0,175 16 20 28 36 44 94 8 XPNT08...EN M3x7,5 D-9 T9
7. SCR/L2.25D18-25XP09 0,290 18 25 34 40,5 53,5 109,5 9 XPNT09...EN M3x7,5 D-9 T9
8. SCR/L2.25D20-25XP10 0,300 20 25 34 45 55 111 10 XPNT10...EN S-3509 T15
9. SCR/L2.25D25-32XP13 0,540 25 32 42 57 69 129 12,5 XPNT13...EN S-4511 T20
10. SCR/L2.25D32-40XP17 1,020 32 40 50 72 88 158 16 XPNT17...EN M4,5x14 A-6 T20
Note: L1=2.25xD.

® info.tech.
94 103-119 tech.info.
XPNT 257 тех.инфо.
