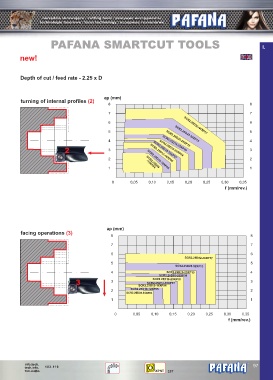

PAFANA SMARTCUT TOOLS I.

new!

Depth of cut / feed rate - 2.25 x D

ap (mm)
turning of internal profiles (2) 8
8

7 7

6 6
SCR2.25D32-40XP17
5 5
SCR2.25D25-32XP13
4 SCR2.25D20-25XP10 4
SCR2.25D18-25XP09
2 3 SCR2.25D14-16XP07 3
SCR2.25D12-16XP06
SCR2.25D16-20XP08
2 SCR2.25D10-12XP05 2
SCR2.25D08
1 1
-10XP04

0 0,05 0,10 0,15 0,20 0,25 0,30 0,35

f (mm/rev.)

ap (mm)
facing operations (3)
8 8

7 7

6 6
SCR2.25D32-40XP17
5 5
SCR2.25D25-32XP13
4 SCR2.25D20-25XP10 4
SCR2.25D18-25XP09
SCR2.25D16-20XP08
3 3 SCR2.25D14-16XP07 3
SCR2.25D12-16XP06
2 SCR2.25D10-12XP05 2
SCR2.25D08-10XP04
1 1

0 0,05 0,10 0,15 0,20 0,25 0,30 0,35

f (mm/rev.)

info.tech. ® 97
tech.info. 103-119
тех.инфо. XPNT 257
