IV. PŁYTKI WIELOOSTRZOWE INDEXABLE INSERTS МНОГОГРАННЫЕ ПЛАСТИНЫ

do frezowania for milling для фрезерования

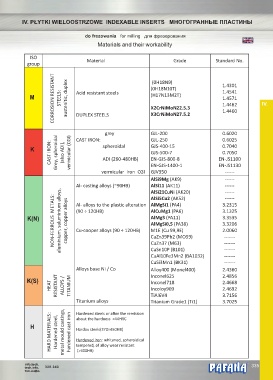

Materials and their workability

ISO

group Material Grade Standard No.

CORROSION RESISTANT austenitic, duplex X2CrNiMoN22.5.3 1.4571 IV.
(0H18N9) 1.4301

(H17N13M2T)

M STEELS: Acid resistant steels (0H18N10T) 1.4541
1.4462

DUPLEX STEELS X3CrNiMoN27.5.2 1.4460

grey GJL-200 0.6020
(CGI) CAST IRON: GJL-250 0.6025

CAST IRON: Grey, spheroidal (also vermicular GJS-500-7 EN-JS1100
spheroidal
K ADI), GJS-400-15 0.7040

0.7050

EN-GJS-800-8
ADI (260-480HB)

------
GJV350

vermicular iron CGI EN-GJS-1400-1 EN-JS1130

AlSi9Mg (AK9) ------

Al- casting alloys (~90HB) AlSi11 (AK11) ------
, alloys AlSi21CuNi (AK20) ------

NON-FERROUS METALS: aluminium, saluminium copper, copper alloys Cu-cooper alloys (90 ÷ 120HB) AlMgSi0,5 (PA38) 3.3206
------
AlSi5Cu2 (AK52)

Al- alloys to the plastic alteration AlMgSi1 (PA4) 3.2315
(90 ÷ 120HB)
AlCuMg1 (PA6)
3.1325

K(N) AlMg3 (PA11) 3.3535

M1E (Cu 99,9E)
2.0060
CuZn39Pb2 (MO59)
-------

CuZn37 (M63)
CuSn10P (B101)
-------

-------
CuAl10Fe3Mn2 (BA1032) -------
CuSi3Mn1 (BK31) -------

Alloys base Ni / Co Alloy400 (Monel400) 2.4360

Inconel625 2.4856

K(S) / Inconel718 2.4668
HEAT RESISTANT ALLOYS TITANIUM Incoloy909 2.4692
Titanium alloys TiAl6V4 3.7156
Titanium Grade1 (Ti1)
3.7025

Hardened steels or after the remission
HARD MATERIALS: Hardened steel, metal mould castings, hardened cast iron Hardened iron: whitened, spheroidical

H about the hardness >44HRC
Hardox steels(370÷450HB)

tempered, of alloy wear resistant
info.tech. (>300HB) ® 335
tech.info. 338-343
