IV. PŁYTKI WIELOOSTRZOWE INDEXABLE INSERTS МНОГОГРАННЫЕ ПЛАСТИНЫ

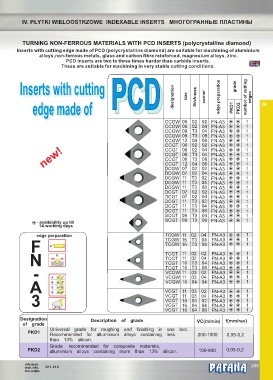

TURNING NON-FERROUS MATERIALS WITH PCD INSERTS (polycrystalline diamond)
Inserts with cutting edge made of PCD (polycrystalline diamond) are suitable for machining of aluminium
alloys,non-ferrous metals, glass and carbon fibre reinforced, magnesium alloys, zinc.
PCD inserts are two to three times harder than carbide inserts.
These are suitable for machining in very stable cutting conditions.

PCD
Inserts with cutting PCD designation size thickness corner edge preparation grade number of cutting edges
Inserts with cutting

edge made of PKD1 PKD2 IV.
edge made of

CCGW 06 02 02 FN-A3 1
CCGW 06 02 04 FN-A3 1
CCGW 09 T3 04 FN-A3 1
CCGW 09 T3 08 FN-A3 1
CCGW 12 04 08 FN-A3 1
CCGT 06 02 02 FN-A3 1
new! CCGT 09 T3 04 FN-A3 1
CCGT 06 02 04 FN-A3
1
CCGT 09 T3 08 FN-A3
1
CCGT 12 04 08 FN-A3
1
DCGW 07 02 02 FN-A3 1
DCGW 07 02 04 FN-A3 1
DCGW 11 T3 02 FN-A3 1
DCGW 11 T3 04 FN-A3 1
DCGW 11 T3 08 FN-A3 1
DCGT 07 02 02 FN-A3 1
DCGT 07 02 04 FN-A3 1
DCGT 11 T3 02 FN-A3 1
DCGT 11 T3 04 FN-A3 1
DCGT 11 T3 08 FN-A3 1
SCGT 09 T3 04 FN-A3 1
SCGT 09 T3 08 FN-A3 1
- availability up till
14 working days
edge preparation TCGW 11 02 04 FN-A3 1
TCGW 16 T3 04 FN-A3 1
F TCGW 16 T3 08 FN-A3 1

N TCGT 11 02 02 FN-A3 1
1
TCGT 11 02 04 FN-A3
1
TCGT 16 T3 04 FN-A3
- TCGT 16 T3 08 FN-A3 1
VCGW 11 03 02 FN-A3
1
VCGW 11 03 04 FN-A3
1
VCGW 16 04 04 FN-A3
A VCGT 11 03 02 FN-A3 1
1
3 VCGT 11 03 04 FN-A3 1
1
VCGT 16 04 02 FN-A3
VCGT 16 04 04 FN-A3
1
3mm
VCGT 16 04 08 FN-A3 1
Designation Description of grade VC(m/min) f(mm/rev)
of grade
Universal grade for roughing and finishing in one tool.
PKD1
Recommended for alluminium alloys containing less 200-1000 0,05-0,2
than 13% silicon.
Grade recommended for composite materials,
PKD2 alluminium alloys containing more than 13% silicon. 100-800 0,05-0,2
